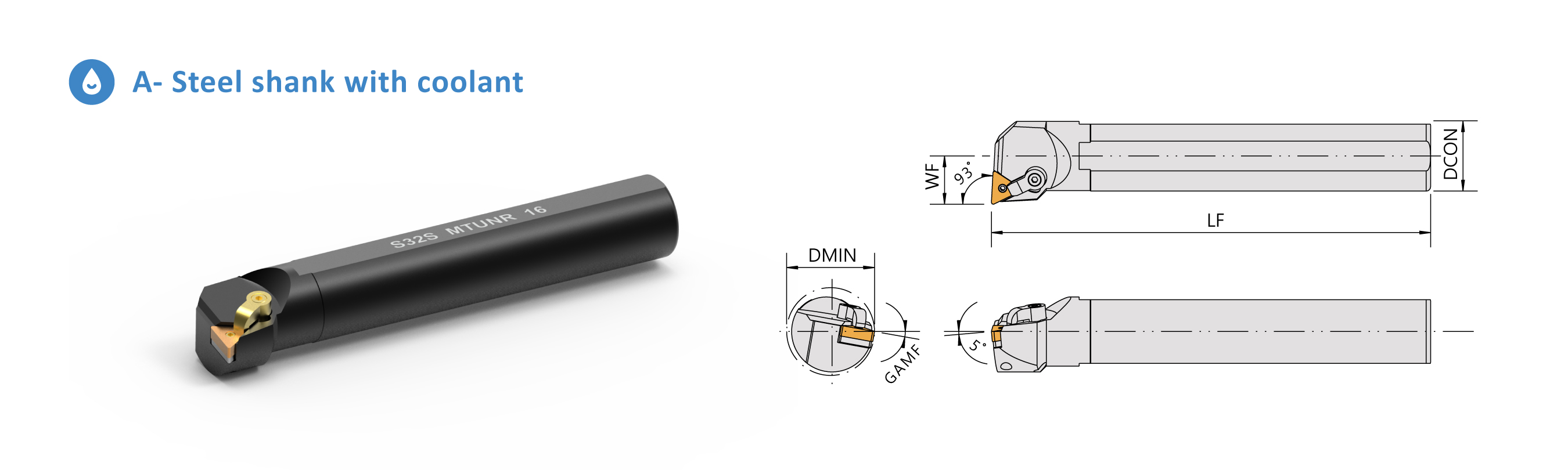

Boring Bars S-MTUN 93°

Please click the picture to enlarge.

Specification

Order No.InsertDimensionsPartsWrench
Right / Left DCON WF LF DMIN GAMF
S16Q-MTUNR/L16 TNMG1604 16 11 180 20 20° - LCS-510 CP50-26S CS7-5018 LW020 LW025
S20R-MTUNR/L16 TNMG1604 20 13 200 25 17° - LCS-510 CP50-26 CS7-5018 LW020 LW025
S20S-MTUNR/L16 TNMG1604 20 13 250 25 17° - LCS-510 CP50-26 CS7-5018 LW020 LW025
S20T-MTUNR/L16 TNMG1604 20 13 300 25 17° - LCS-510 CP50-26 CS7-5018 LW020 LW025
S25R-MTUNR/L16 TNMG1604 25 17 200 32 12° - LCS-510 CP50-22 CS7-6024 LW020 LW030
S32S-MTUNR/L16 TNMG1604 32 22 250 40 10° SMT-322 LCS-513 CP50-22 CS7-6024 LW020 LW030
S40T-MTUNR/L16 TNMG1604 40 27 300 50 10° SMT-322 LCS-513 CP50-22 CS7-6030 LW020 LW030
S50U-MTUNR/L16 TNMG1604 50 35 350 63 SMT-322 LCS-513 CP50-22 CS7-6030 LW020 LW030
S60V-MTUNR/L16 TNMG1604 60 36 400 70 10° SMT-322 LCS-513 CP50-22 CS7-6030 LW020 LW030
S63Y-MTUNR/L16 TNMG1604 63 38 500 75 10° SMT-322 LCS-513 CP50-22 CS7-6030 LW020 LW030
S40T-MTUNR/L22 TNMG2204 40 27 300 50 15° SMT-433 LCS-617 CP50-28 CS7-8030 LW030 LW040
S50U-MTUNR/L22 TNMG2204 50 35 350 63 12° SMT-433 LCS-617 CP50-28 CS7-8030 LW030 LW040
