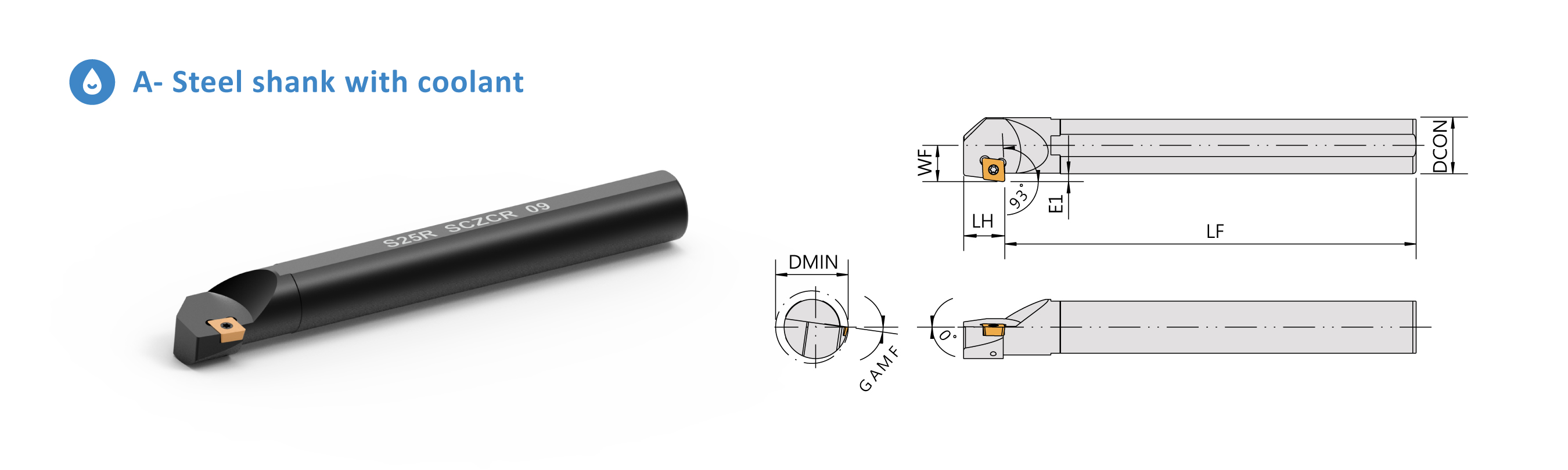

Boring Bars S-SCZC 93°
Please click the picture to enlarge.
Specification
| Order No. | Insert | Dimensions(mm) | Parts | Wrench |
|---|
| Right/Left |
 |
DCON |
WF |
E1 |
LF |
DMIN |
LH |
GAMF |
 |
 |
| S08H-SCZCR/L06 |
CCMT0602 |
8 |
6.5 |
2.5 |
100 |
12 |
10 |
13° |
CS25050 |
FT-7 |
| S10K-SCZCR/L06 |
CCMT0602 |
10 |
7.5 |
2.5 |
125 |
14 |
10 |
12° |
CS25061S |
FT-7 |
| S12M-SCZCR/L06 |
CCMT0602 |
12 |
8.5 |
2.5 |
150 |
16 |
10 |
10° |
CS25061S |
FT-7 |
| S16Q-SCZCR/L09 |
CCMT09T3 |
16 |
11.5 |
3.5 |
180 |
21 |
16 |
10° |
CS35090 |
FT-15 |
| S20R-SCZCR/L09 |
CCMT09T3 |
20 |
13.5 |
3.5 |
200 |
25 |
18 |
8° |
CS35090 |
FT-15 |
| S25R-SCZCR/L09 |
CCMT09T3 |
25 |
16 |
3.5 |
200 |
32 |
18 |
8° |
CS35090 |
FT-15 |
