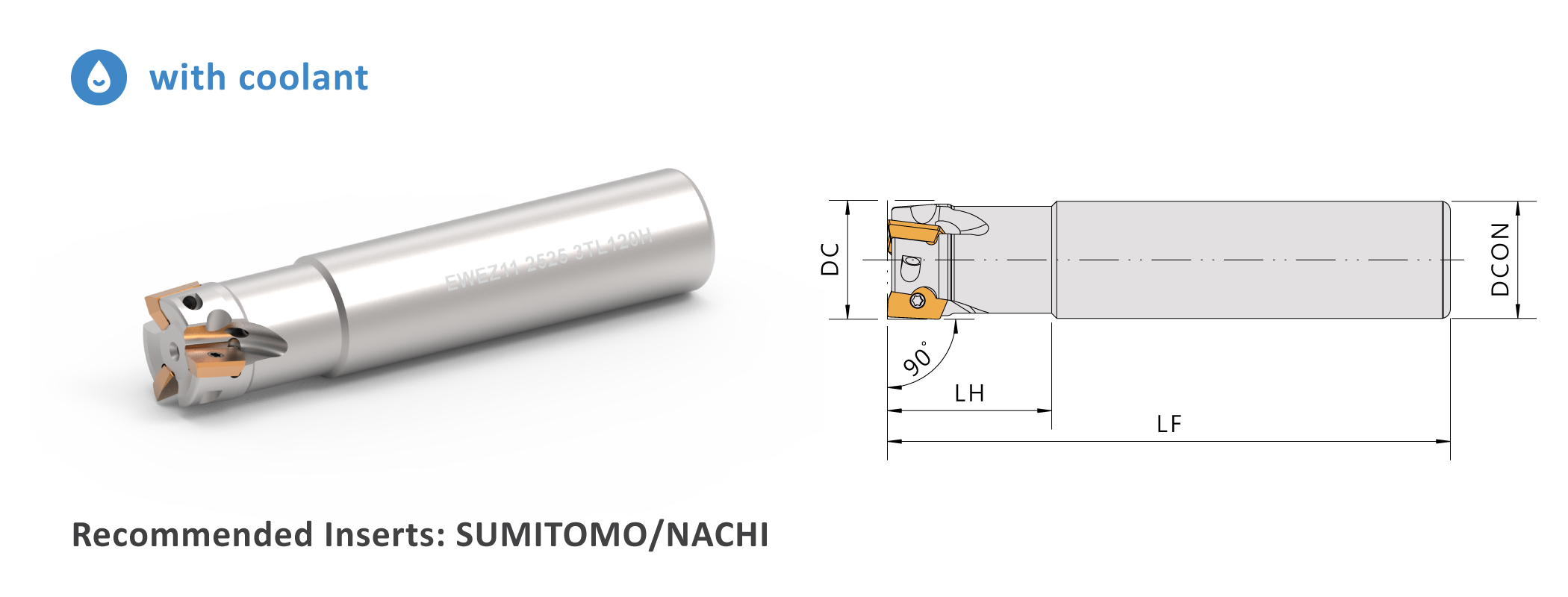

▼Recommended Inserts:SUMITOMO ▼with coolant
| Order No. | Insert | Dimensions(mm) | Screw | Wrench | ||||
|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
DC | DCON | LH | LF | I No. |  |
 |
| EWEZ11-1416-1TL80H | AOMT11T3 AOET11T3 |
14 | 16 | 25 | 80 | 1 | CS3006P | FT-8P |
| EWEZ11-1416-1TL120H | 14 | 16 | 25 | 120 | 1 | |||
| EWEZ11-1612-2TL100H | 16 | 12 | 25 | 100 | 2 | |||
| EWEZ11-1614-2TL145H | 16 | 14 | 25 | 145 | 2 | |||
| EWEZ11-1616-2TL100H | 16 | 16 | 25 | 100 | 2 | |||
| EWEZ11-1616-2TL145H | 16 | 16 | 25 | 145 | 2 | |||
| EWEZ11-1716-2TL100H | 17 | 16 | 25 | 100 | 2 | |||
| EWEZ11-1716-2TL145H | 17 | 16 | 25 | 145 | 2 | |||
| EWEZ11-2016-2TL110H | 20 | 16 | 30 | 110 | 2 | |||
| EWEZ11-2016-3TL110H | 20 | 16 | 30 | 110 | 3 | |||
| EWEZ11-2018-2TL150H | 20 | 18 | 25 | 150 | 2 | |||
| EWEZ11-2020-2TL110H | 20 | 20 | 30 | 110 | 2 | |||
| EWEZ11-2020-2TL150H | 20 | 20 | 40 | 150 | 2 | |||
| EWEZ11-2020-3TL110H | 20 | 20 | 30 | 110 | 3 | |||
| EWEZ11-2120-3TL110H | 21 | 20 | 30 | 110 | 3 | |||
| EWEZ11-2120-2TL150H | 21 | 20 | 30 | 150 | 2 | |||
| EWEZ11-2520-3TL120H | 25 | 20 | 35 | 120 | 3 | |||
| EWEZ11-2520-4TL120H | 25 | 20 | 35 | 120 | 4 | |||
| EWEZ11-2520-4TL170H | 25 | 20 | 35 | 170 | 4 | |||
| EWEZ11-2522-2TL170H | 25 | 22 | 30 | 170 | 2 | |||
| EWEZ11-2525-2TL120H | 25 | 25 | 35 | 120 | 2 | |||
| EWEZ11-2525-2TL170H | 25 | 25 | 50 | 170 | 2 | |||
| EWEZ11-2525-3TL120H | 25 | 25 | 35 | 120 | 3 | |||
| EWEZ11-2525-3TL170H | 25 | 25 | 50 | 170 | 3 | |||
| EWEZ11-2525-4TL120H | 25 | 25 | 35 | 120 | 4 | |||
| EWEZ11-2625-2TL170H | 26 | 25 | 30 | 170 | 2 | |||
| EWEZ11-2625-4TL120H | 26 | 25 | 35 | 120 | 4 | |||
| EWEZ11-3025-2TL170H | 30 | 25 | 30 | 170 | 2 | |||
| EWEZ11-3025-4TL130H | 30 | 25 | 40 | 130 | 4 | |||
| EWEZ11-3230-2TL170H | 32 | 30 | 30 | 170 | 2 | |||
| EWEZ11-3225-5TL130H | 32 | 25 | 40 | 130 | 5 | |||
| EWEZ11-3232-2TL130H | 32 | 32 | 40 | 130 | 2 | |||
| EWEZ11-3232-2TL170H | 32 | 32 | 60 | 170 | 2 | |||
| EWEZ11-3232-3TL130H | 32 | 32 | 40 | 130 | 3 | |||
| EWEZ11-3232-3TL170H | 32 | 32 | 60 | 170 | 3 | |||
| EWEZ11-3232-4TL130H | 32 | 32 | 40 | 130 | 4 | |||
| EWEZ11-3232-5TL130H | 32 | 32 | 40 | 130 | 5 | |||
| EWEZ11-3532-2TL170H | 35 | 31 | 30 | 170 | 2 | |||
| EWEZ11-3532-3TL170H | 35 | 32 | 30 | 170 | 3 | |||
| EWEZ11-3532-5TL130H | 35 | 32 | 40 | 130 | 5 | |||
| EWEZ11-4032-2TL150H | 40 | 32 | 30 | 150 | 2 | |||
| EWEZ11-4032-2TL170H | 40 | 32 | 30 | 170 | 2 | |||
| EWEZ11-4032-4TL150H | 40 | 32 | 30 | 150 | 4 | |||
| EWEZ11-4032-6TL150H | 40 | 32 | 30 | 150 | 6 | |||
| EWEZ11-5032-3TL170H | 50 | 32 | 30 | 170 | 3 | |||
| EWEZ11-5032-5TL150H | 50 | 32 | 30 | 150 | 5 | |||
| EWEZ11-5032-7TL150H | 50 | 32 | 30 | 150 | 7 | |||
*EWEZ11-2020-3TL110H with cooling channel
*EWEZ11-2020-3TL110 without cooling channel
